It Might Just Be The One

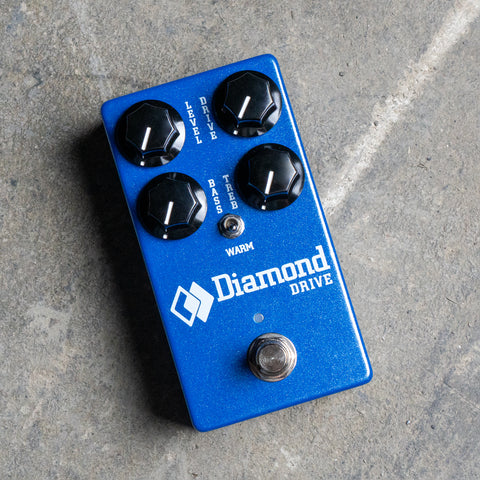

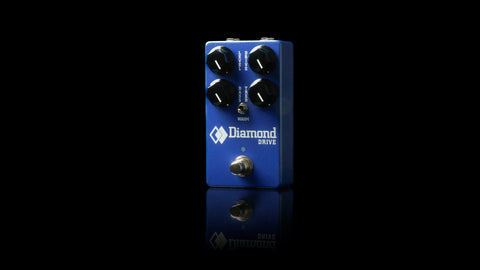

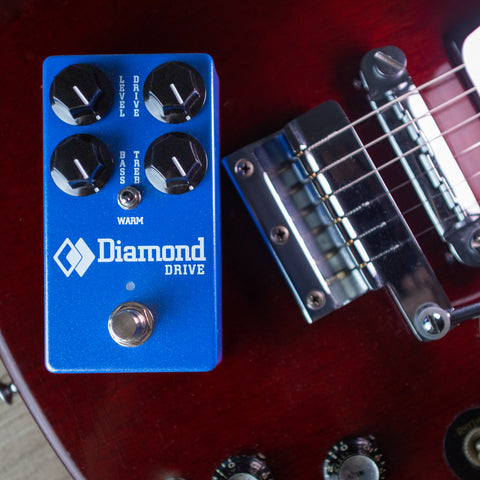

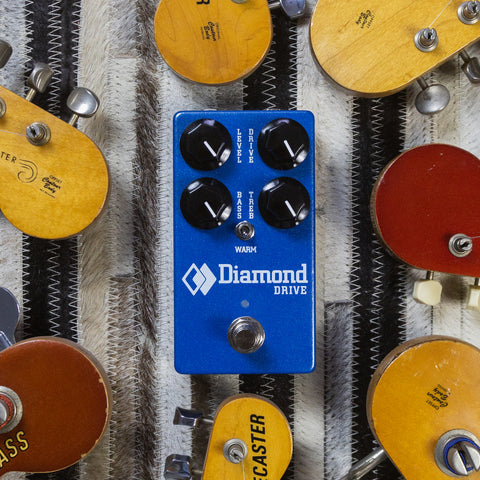

Diamond Drive

Regular price$209.00 Sale price

Drenched in classic Diamond DNA, the next-gen Diamond Drive is built on a foundation of signature drive and EQ soundblocks. Distilling the most desirable and functional elements of the original J-Drive, Blaze and Fireburst pedals, the Diamond Drive combines a warm and wide-ranging overdrive built around a Premium Sound Burr-Brown Op-amp with a dual band, post-gain active EQ.

DIPPED IN DIAMOND DNA

Drawing inspiration from past Drive, J-Drive and Fireburst designs, the new Diamond Drive combines our classic overdrive platform with our active Baxandall EQ, and might just be the perfect drive pedal.

TAILORED FOR ANY OCCASION

The Burr-Brown equipped drive section delivers anything from a gritty clean boost to thick, natural asymmetric saturation while the dual-band active Baxandall EQ and selectable Warm High Shelf Filter dial it all in to perfection.

THE NEW STANDARD

For the modern pedal-user's needs. Space saving design, without any loss of quality. The Diamond Drive package is complete with top-mounted jacks, 9-18VDC operation and relay based true bypass switching.

Input Impedance: > 1 MΩ

Output Impedance: < 10 KΩ

Switching: Relay True Bypass

Power Requirement: 9-18 VDC , negative tip, 2.1 mm barrel jack.

Current Draw @ 9 VDC : 17 mA

Baxandall EQ Bass Frequency: 150 Hz +|- 6 dB

Baxandall EQ Treble Frequency: 3 KHz +|- 6 dB

Warm Shelf Filter Frequency: 1 KHz +|- 4.5 dB

Dimensions: 122 x 66.98 x 39.64 mm (4.8 x 2.64 x 1.58 ")

Weight: 280 g

Made In Canada

All Diamond products purchased through the diamondpedals.com website or our authorized dealers come with a three-year warranty against failure resulting from defective parts and/or faulty workmanship. Cosmetic flaws or issues related to wear and tear are not covered.

The warranty applies only to the original owner of the product and is not transferable. Warranty coverage terminates three years after the owner receives the product. While a product is under warranty, the product will be repaired free of charge. The owner of the product will be responsible for both shipping to and from Diamond Pedals. Warranty coverage will be automatically canceled should the product be tampered with, modified, abused, damaged through misuse, repaired by an unauthorized third party, or damaged through failure to follow the operating instructions.

USE OF AN IMPROPER POWER SUPPLY WILL VOID THE WARRANTY
